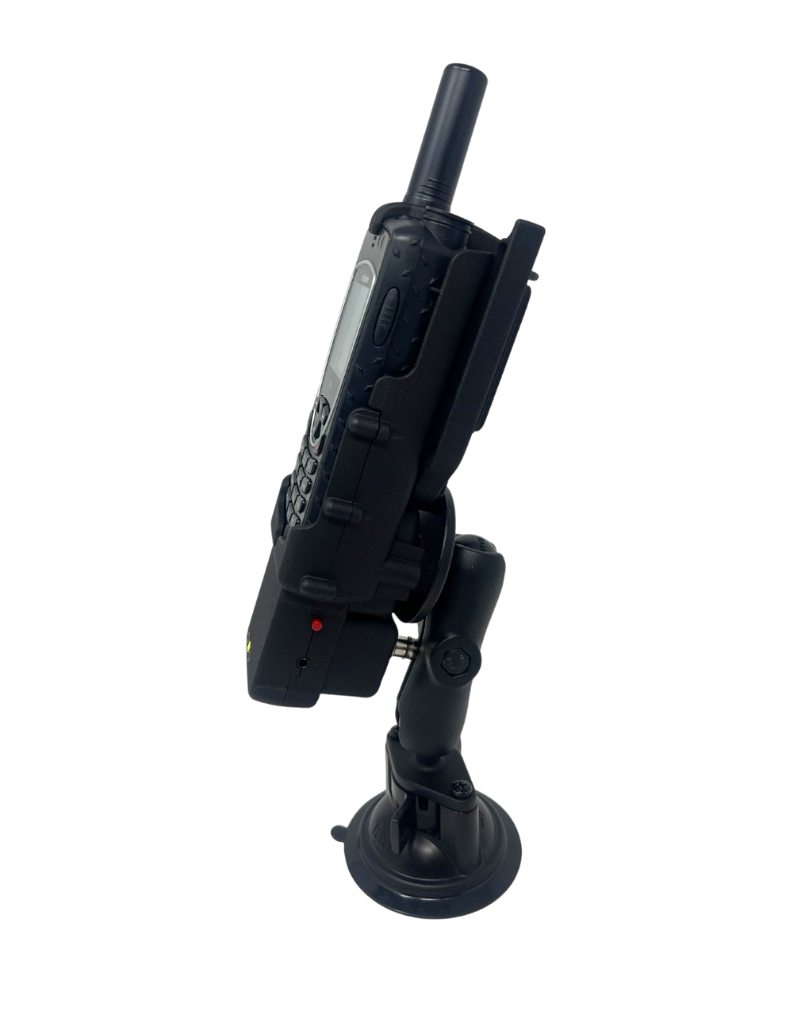

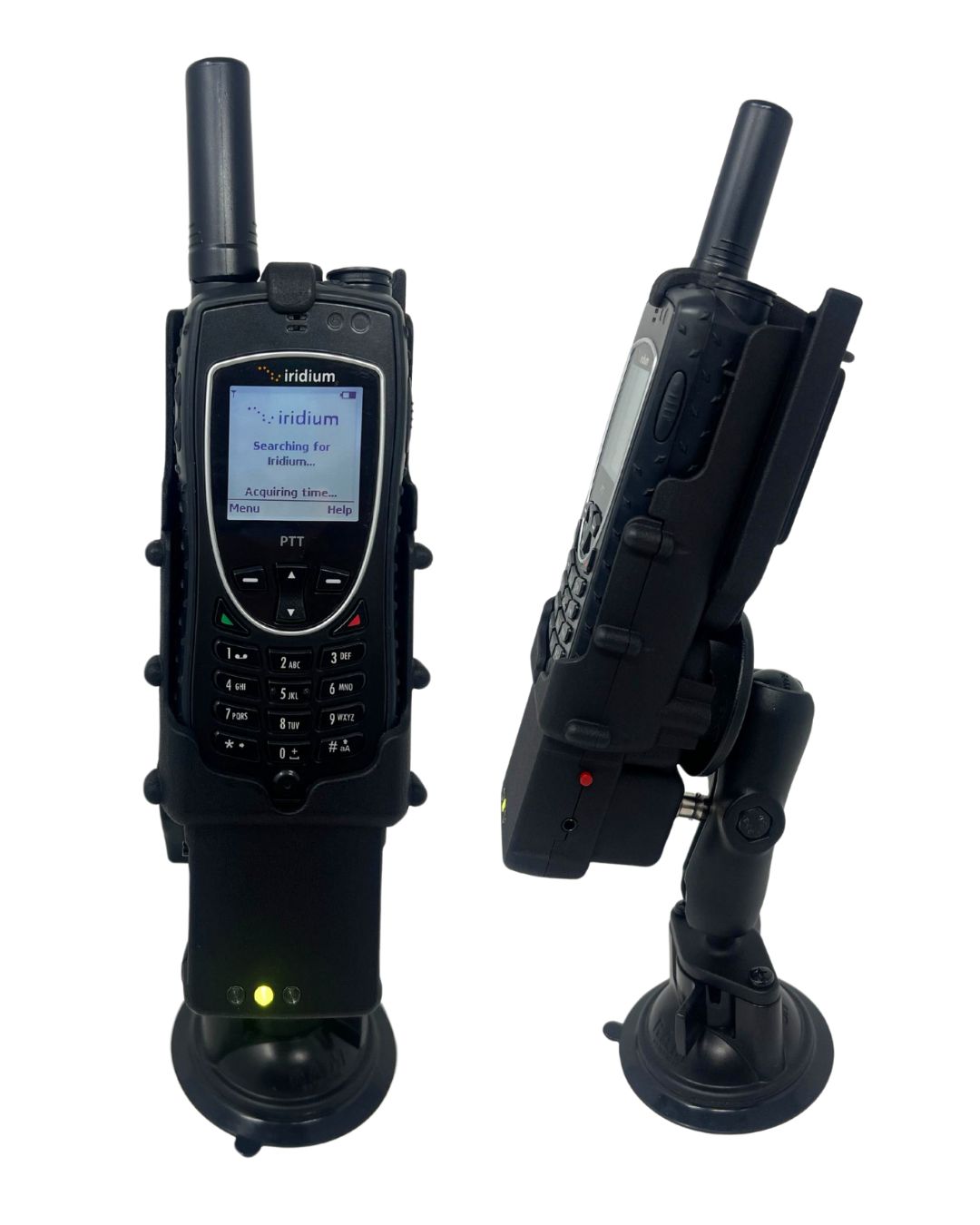

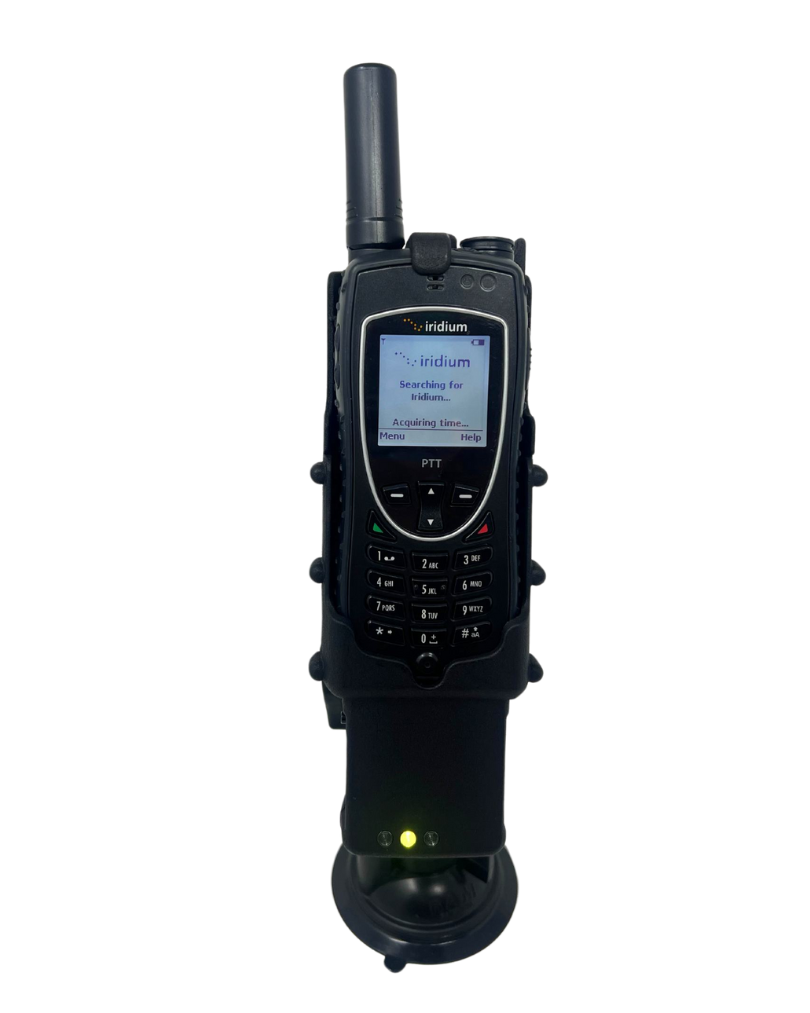

Global Satellite E-Dock™ for Iridium Extreme®
Secure, Rugged AES-256 Encryption Docking Station E-DOCK
E-Dock : Keep your Iridium 9575 PTT phone fully charged and your voice calls locked down with user-managed AES-256 encryption—whether you’re on the move or indoors.
Product Description
Secure, Rugged AES-256 Encryption Docking Station
Keep your Iridium 9575 PTT phone fully charged and your voice calls locked down with user-managed AES-256 encryption—whether you’re on the move or indoors.
🔐 Key Capabilities
-
User-Managed AES-256 Encryption: Point-to-point voice telephony secured with 256-bit keys
-
End-User Programmable Key Management: Intuitive GUI for loading and rotating encryption keys
-
Visual & LED Feedback: Real-time indicators for power, encryption status, and call activity
-
Advanced Audio Processing: Gain control, echo/noise cancellation, and silence detection
-
Secure Firmware & Boot-Loading: Ensures only authenticated updates load onto the device
-
Multi-Function Press Buttons: One-touch power on/off and call answer/end
-
3.5 mm TRRS Headset Jack: Compatible with headsets and external microphones
-
External Antenna Support: BNC (with TNC adapter) connector for improved signal
-
Rugged, Integrated Design: Built for moving vehicles and indoor installations
-
Simple Spring-Loaded Latch: Quick, secure phone mounting and removal
-
Made in the U.S.
⚙️ Technical Specifications
| Specification | Detail |
|---|---|
| Dimensions (L × W × H) | 3 × 3 × 8 in (76 × 76 × 203 mm) |
| Weight | 200 g |
| Encryption Type & Key Size | AES-256, 256 bit |
| Power Input / Charging | USB-C port for battery recharge, encryption key loading, firmware updates; Iridium 9575 DC barrel connector; OEM charger compatible |
| Audio Connector | 3.5 mm TRRS jack |
| Antenna Connector | BNC (TNC adapter compatible) |
| Operating Environment | Mobile vehicles, indoor use |
| User Interface | Graphical GUI via USB-C connection |
📦 What’s in the Box
-
Global Satellite SecureDock™ AES-256 Encrypted Docking Station
-
USB-C Cable (for power, key loading, firmware updates)
-
Iridium 9575 DC Barrel Power Adapter
-
Mounting Hardware Kit
-
User Manual & Quick-Start Guide
🌐 Why Global Satellite?
At Global Satellite, we combine cutting-edge encryption technology with rugged, field-ready designs. Our SecureDock™ ensures that your Iridium 9575 PTT calls and location data stay confidential—backed by a user-friendly interface and U.S.-based manufacturing you can trust.
📞 Contact Us
For more information about the SecureDock™ or to place an order, please contact our sales team:
- 📞 +1-954-459-3000 | +1-954-854-3389📧 support@globalsatellite.us | webcontact@globalsatellite.us🌍 Discover our website : globalsatellite.us – globalsatellite.gi – globalsatellite.fr – globalsatellite.ky – globalsatellite.ma
Note: The Iridium Extreme® satellite phone is sold separately.
