KVH TracVision TV8

0 out of 5 based on 0 customer ratings
(0 customer reviews)

$17,595.00

Product Meta

KVH TracVision

is a line of marine and mobile satellite TV antenna systems designed to provide access to hundreds of digital HD and SD TV channels via regional Ku-band satellite services around the globe. They are known for their superior performance, reliability, and ease of use, making them popular choices for boaters, RVers, and other outdoor enthusiasts who want to stay connected to their favorite programming even when off the grid.

Complementary SATCOM Systems

Complement your KVH TracVision satellite TV system with a KVH Tracphone V3-HTS, V7-HTS, or V11-HTS satellite communications system for fast, reliable satellite Internet and VoIP services. Operating on KVH’s global mini-VSAT Broadband HTS network, the world’s no. 1 maritime VSAT service, the TracPhone HTS-series family delivers data speeds as fast as 20 Mbps and worldwide connectivity in compact, rugged domes.

TV-series: An Unsurpassed Onboard Viewing Experience

The award-winning TracVision TV-series offers superior performance and enables you and everyone onboard to enjoy hundreds of digital HD and SD TV and movie channels via regional Ku-band satellite services around the globe. This powerful family of fully stabilized systems includes sizes, features, and options for every size boat or yacht and brings the television content you love onboard using sophisticated technology that’s simple to use.

Here are some of the key features of KVH TracVision systems:

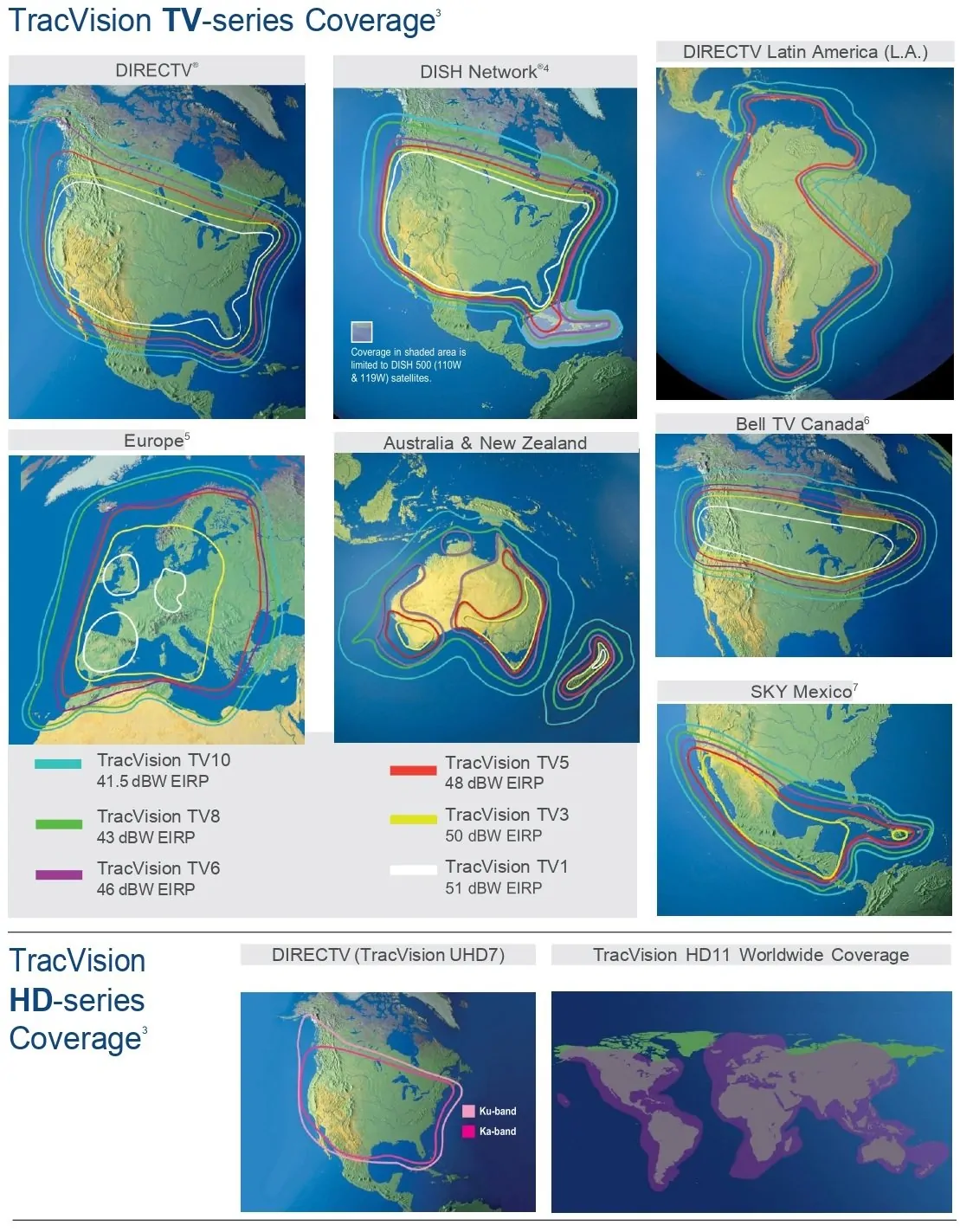

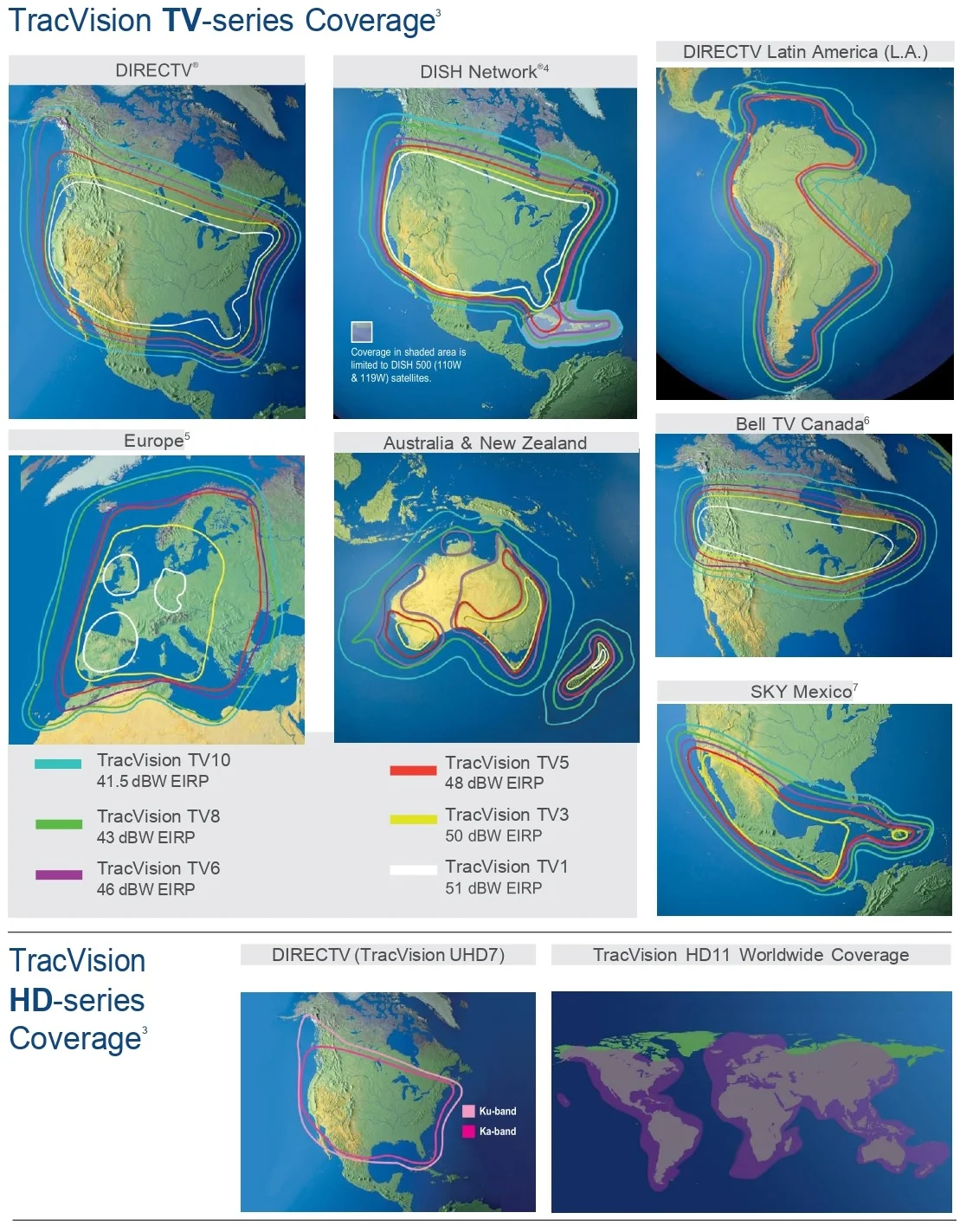

  • Global coverage: Enjoy your favorite channels almost anywhere in the world with coverage options for various regions.
  • Automatic satellite acquisition: The antenna automatically locates and locks onto the desired satellite, ensuring a clear and consistent signal.
  • RingFire technology: This proprietary technology provides wider geographic coverage and better reception than competing antennas, even in extreme weather conditions.
  • Easy control: The systems can be easily controlled through a mobile app or a dedicated control unit.

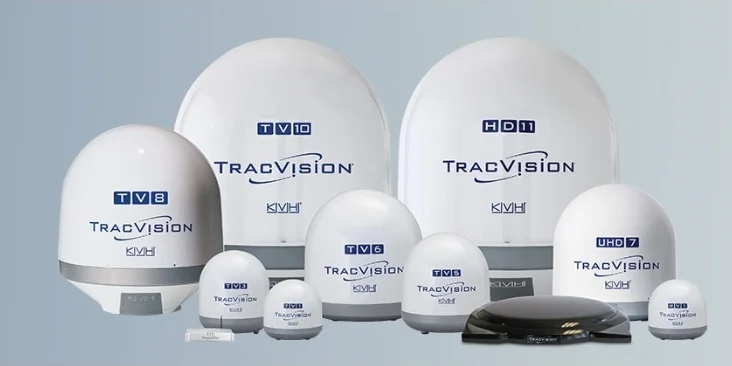

  • Multiple models: KVH offers a variety of TracVision models to suit different needs and budgets, from compact antennas for smaller boats to high-performance systems for larger yachts and RVs.
    KVH TracVision

HD-series

Whether you need a global satellite TV solution or just the ability to receive DIRECTV HD channels, the TracVision HD-series offers it all. Now, everyone onboard can watch whatever they want on any TV onboard, in sharp HD resolution – with full DVR support – thanks to KVH’s exclusive TriAD™ technology for receiving broadcasts from three DIRECTV satellites at once.

Model TracVision TV1 TracVision TV3 TracVision TV5 TracVision TV6 TracVision TV8 TracVision TV10
Vessel Size Compatibility For 20+ ft vessel For 30+ ft vessel For 40+ ft vessel For 50+ ft vessel For 80+ ft vessel For 80+ ft vessel
Dish Diameter 32 cm (12.5″) 37 cm (14.5″) 45 cm (18″) 60 cm (24″) 81.3 cm (32″) 1 meter (41.5″)
Dome Dimensions (WxH) 34.3 x 33.7 cm (13.5″ x 13.3″) 39.4 x 44.7 cm (15.5″ x 17.6″) 48.8 x 53.2 cm (19.2″ x 20.9″) 66.6 x 69.9 cm (26.2″ x 27.4″) 88.9 x 99.9 cm (35.0″ x 39.3″) 1.2 m x 1.4 m (48.8″ x 57.3″)


Antenna Weight



3.6 kg (8 lbs)

7.7 kg (17 lbs) Linear Universal Dual:

9.1 kg (20 lbs)



11.3 kg (25 lbs)



24.2 kg (53.4 lbs)



40.0 kg (88.2 lbs)



90.0 kg (198 lbs)

Min. EIRP (Ku-band)1 51 dBW 50 dBW 48 dBW 46 dBW 43 dBW 41.5 dBW


Elevation Range



+20° to +70°/

Continuous

+10° to +80°/

Continuous Linear Universal Dual:

+10° to +80°/ 720°



+0° to +80°/ 720°



+10° to +80°/ 720°



-15° to +80°/ 720°



0° to +80°/ 720°

Linear Skew Control Manual Manual Manual or Automatic Automatic Automatic Automatic


LNB Types Available (polarization/output)



Linear Universal Single5 Circular

Linear Universal Single5 Linear Universal Dual6

Circular

SKY Mexico Stacked

Linear Universal Quad DIRECTV L.A. Circular Circular

SKY Mexico Stacked

Linear Universal Quad DIRECTV L.A. Circular Circular

SKY Mexico Stacked

Linear Universal Quad DIRECTV L.A. Circular Circular

SKY Mexico Stacked

Linear Universal Quad DIRECTV L.A. Circular Circular

SKY Mexico Stacked

System Power 10-30 VDC

42 watts nominal

10-30 VDC

42 watts nominal

10-30 VDC

53 watts nominal

10-30 VDC

53 watts nominal

10-30 VDC

60 watts nominal

20-30 VDC

75 watts nominal

Cabling

(Consult price list for alternative cabling)

1 Power/RF cable:

RG6 15 m (50 ft)

(single cable) included

1 Power/RF cable:

RG6 15 m (50 ft)

(single cable) included8

1 Power/RF cable:

RG6 30 m (100 ft)

(single cable) included8

1 Power/RF cable:

RG6 30 m (100 ft)

(single cable) included8

1 Power/RF cable:

RG11 30 m (100 ft)

(single cable) included8

1 Power/RF cable:

RG11 30 m (100 ft)

(single cable) included8

Warranty2 2 year parts/1 year labor 2 year parts/1 year labor 2 year parts/1 year labor 2 year parts/1 year labor 2 year parts/1 year labor 2 year parts/1 year labor



KVH TracVision

Model TracVision UHD7 TracVision HD11
Vessel Size Compatibility For 50+ ft vessel For 80+ ft vessel
Dish Diameter 60 cm (24″) 1 m (41.5″)
Dome Dimensions (WxH) 66.3 x 69.6 cm (26.1″ x 27.4″) 1.2 m x 1.4 m (48.8″ x 57.3″)
Antenna Weight 23.6 kg (52 lbs) 90.7 kg (200 lbs)
Min. EIRP (Ku-band)1 46 dBW (Ku-band) / 47 dBW (Ka-band) 42 dBW (Ku-band) / 45 dBW (Ka-band)
Elevation Range +10° to +80° -24° to 119°/720°
Skew Control Gyro Stabilized Stabilized/Automatic


LNB

(polarization/output)



Ka/Ku/Ka-band Circular

Digitally programmable Universal World Ka/Ku/Ka-band Linear/Circular Quad
System Power 10-30 VDC 53 watts nominal*

*Antenna requires AC power supply

100-250 VAC / 250 watts nominal
Cabling

(Consult price list for alternative cabling)

2 Coax 75-Ohm cables for up to 13 tuners,

3 cables for 26 tuners, 5 cables for 104 tuners

100 ft KVH supplied Power/Data cable (included) 4 RG11 cables 75 ohm (customer supplied)
Warranty2 2-year parts/1-year labor 2-year parts/1-year labor
