Intellian Flat Panel Series
The Intellian Flat Panel Series offers high-performance satellite communication solutions designed for Eutelsat OneWeb’s LEO network. These user terminals are optimized for size, weight, and power (SWaP), making them ideal for various applications including land fixed, land mobility, and maritime. With efficient array design, superior performance, and versatile applications, the Intellian Flat Panel Series ensures reliable connectivity even in the most challenging environments.
Product Description
Overview
The Intellian Flat Panel Series offers cutting-edge satellite communication solutions designed for Eutelsat OneWeb’s LEO network. These user terminals are optimized for size, weight, and power (SWaP), making them ideal for various applications including land fixed, land mobility, and maritime.

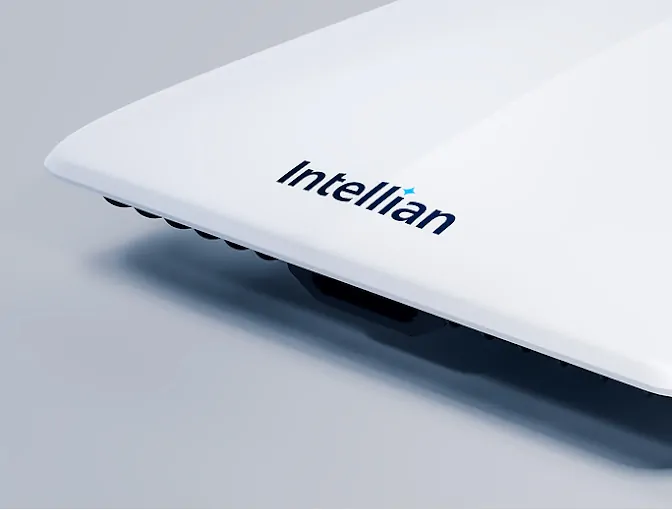

Key Features
- Efficient Array Design: Utilizes active electronically scanned arrays (AESA) to precisely control antenna beams.
- Superior Performance: High throughput and reliability, even at low elevation angles.
- Compact and Lightweight: Optimized for size, weight, and power, making them ideal for SWaP-constrained use cases.
- Versatile Applications: Suitable for business-critical communications, small enterprises, maritime users, and more.

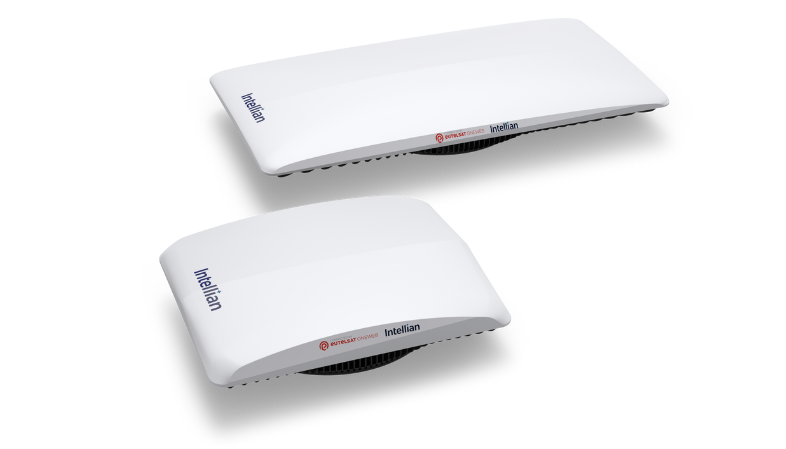

Models

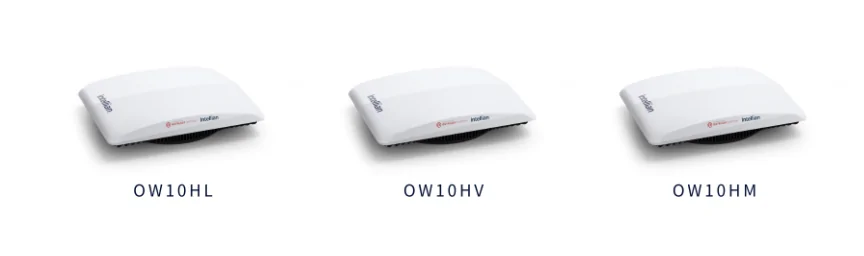

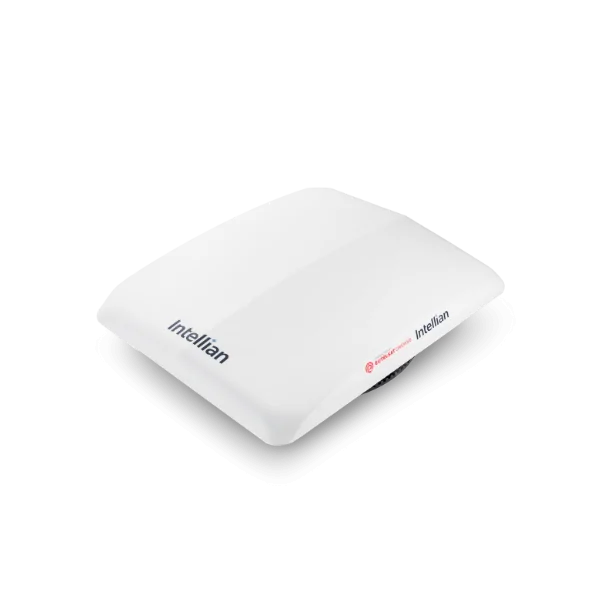

Compact Flat Panel Models:
- OW10HL – Compact Flat Panel for Land Fixed
- Dimensions: 56 x 45 x 12 cm
- Weight: 12.2 kg
- Operating Temperature: -40°C to +55°C
- Features: Low-profile weatherized design, reliable connectivity for fixed site users, ideal for small enterprises, business continuity, cellular backhaul, and government applications.
- OW10HM – Compact Flat Panel for Maritime
- Dimensions: 56 x 45 x 12 cm
- Weight: 12.2 kg
- Operating Temperature: -40°C to +55°C
- Features: Low-profile weatherized design, reliable connectivity for maritime users, ideal for fishing vessels, yachts, navy vessels, USVs, and other small vessels at sea.
- OW10HV – Compact Flat Panel for Land Mobility
- Dimensions: 56 x 45 x 12 cm
- Weight: 12.2 kg
- Operating Temperature: -40°C to +55°C
- Features: Low-profile weatherized design, reliable connectivity for land mobile users, ideal for first responders, transportation, agriculture, and forestry.

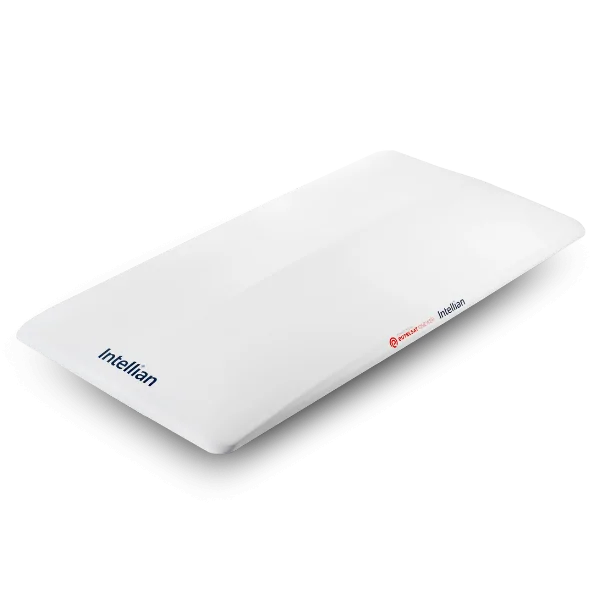

Enterprise Flat Panel Models:
- OW11FL – Enterprise Flat Panel for Land Fixed
- Dimensions: 70 x 60 x 15 cm
- Weight: 18.5 kg
- Operating Temperature: -40°C to +55°C
- Features: High-performance design, reliable connectivity for large enterprises, business continuity, cellular backhaul, and government applications.
- OW11FM – Enterprise Flat Panel for Maritime
- Dimensions: 70 x 60 x 15 cm
- Weight: 18.5 kg
- Operating Temperature: -40°C to +55°C
- Features: High-performance design, reliable connectivity for maritime users, ideal for large vessels, navy ships, and other maritime applications.
- OW11FV – Enterprise Flat Panel for Land Mobility
- Dimensions: 70 x 60 x 15 cm
- Weight: 18.5 kg
- Operating Temperature: -40°C to +55°C
- Features: High-performance design, reliable connectivity for land mobile users, ideal for large-scale operations, transportation, and government applications.
Benefits
- Optimized Performance: Delivers high-speed connectivity with minimal power consumption.
- Simplified Installation: Easy to install with flexible mounting options.
- Ruggedized Design: Built to withstand harsh environmental conditions.
- Mobile App Integration: Manage and monitor your terminal with ease using the dedicated mobile app.
Applications

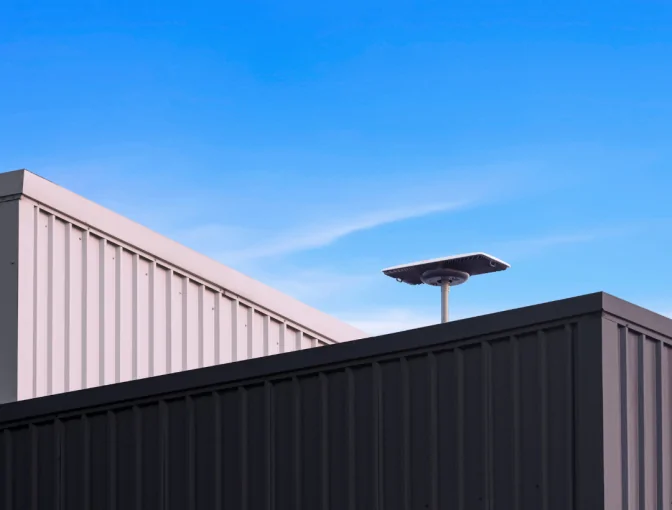

- Land Fixed: Ideal for small enterprises, business continuity, cellular backhaul, and government applications.
- Maritime: Perfect for fishing vessels, yachts, navy vessels, USVs, and other small vessels at sea.
- Land Mobility: Suitable for first responders, transportation, agriculture, and forestry.
Technical Specifications
- Dimensions: Varies by model (see above)
- Weight: Varies by model (see above)
- Operating Temperature: -40°C to +55°C
- Ingress Protection: IP66
- G/T: 9 dB/K
- EIRP (Dual Carrier): +36.6 dBW
Instruction Documents:
Intellian Flat Panel Series Comparison
Model | Type | Dimensions | Weight | Operating Temperature | Ingress Protection | G/T | EIRP (Dual Carrier) | Applications | Features |
---|---|---|---|---|---|---|---|---|---|
OW10HL | Compact | 56 x 45 x 12 cm | 12.2 kg | -40°C to +55°C | IP66 | 9 dB/K | +36.6 dBW | Land Fixed | Low-profile weatherized design, reliable connectivity for fixed site users, ideal for small enterprises, business continuity, cellular backhaul, and government applications. |
OW10HM | Compact | 56 x 45 x 12 cm | 12.2 kg | -40°C to +55°C | IP66 | 9 dB/K | +36.6 dBW | Maritime | Low-profile weatherized design, reliable connectivity for maritime users, ideal for fishing vessels, yachts, navy vessels, USVs, and other small vessels at sea. |
OW10HV | Compact | 56 x 45 x 12 cm | 12.2 kg | -40°C to +55°C | IP66 | 9 dB/K | +36.6 dBW | Land Mobility | Low-profile weatherized design, reliable connectivity for land mobile users, ideal for first responders, transportation, agriculture, and forestry. |
OW11FL | Enterprise | 70 x 60 x 15 cm | 18.5 kg | -40°C to +55°C | IP66 | 9 dB/K | +36.6 dBW | Land Fixed | High-performance design, reliable connectivity for large enterprises, business continuity, cellular backhaul, and government applications. |
OW11FM | Enterprise | 70 x 60 x 15 cm | 18.5 kg | -40°C to +55°C | IP66 | 9 dB/K | +36.6 dBW | Maritime | High-performance design, reliable connectivity for maritime users, ideal for large vessels, navy ships, and other maritime applications. |
OW11FV | Enterprise | 70 x 60 x 15 cm | 18.5 kg | -40°C to +55°C | IP66 | 9 dB/K | +36.6 dBW | Land Mobility | High-performance design, reliable connectivity for land mobile users, ideal for large-scale operations, transportation, and government applications. |
