Global Satellite

Iridium Certus 700

0 out of 5 based on 0 customer ratings
(0 customer reviews)

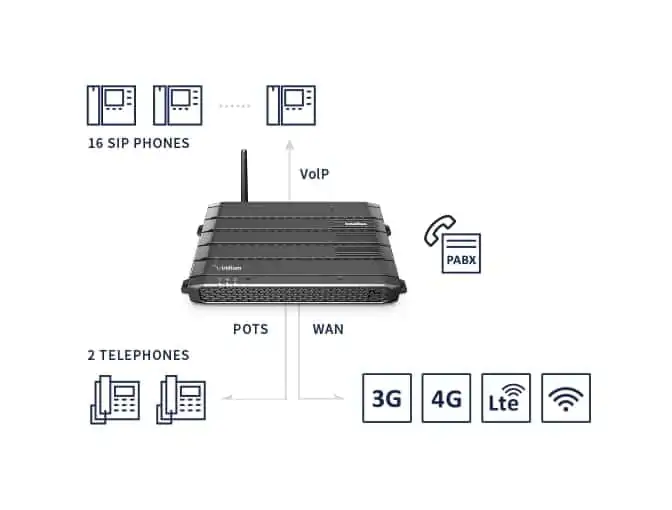

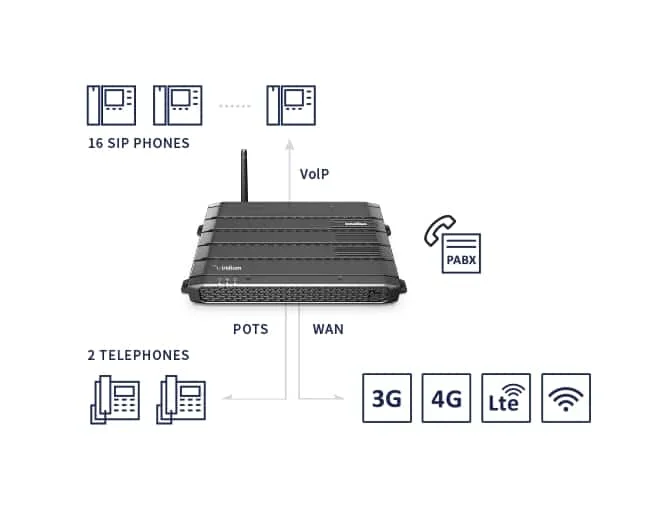

  • Soft PABX & LTE interface capability
  • 3 HD Quality voice lines
  • Up to 16 SIP Phones
  • Up to 2 analog telephones
  • 3G/4G/LTE WAN Port

Click Here to Download the instructions File :

Product Meta

Iridium Certus 700

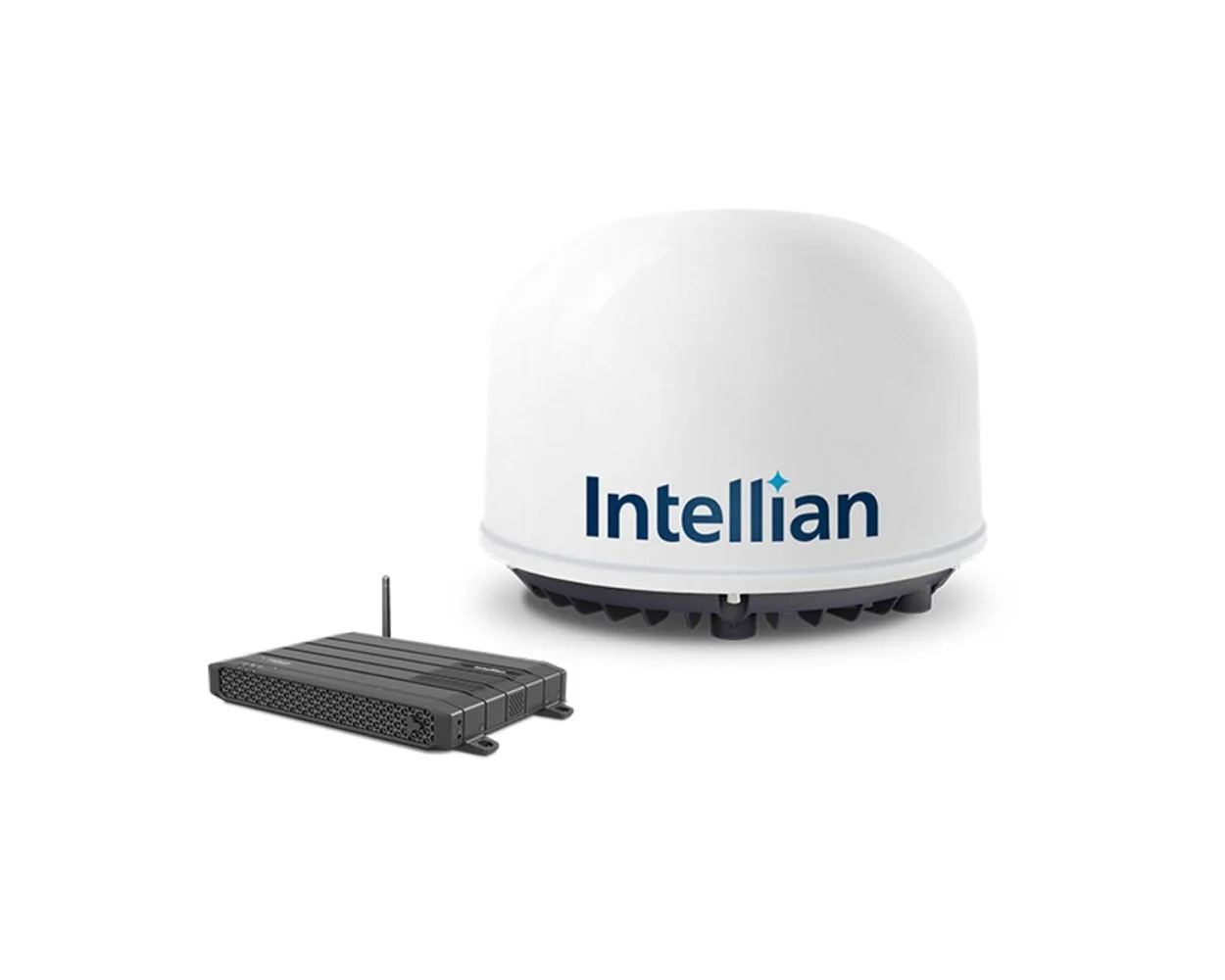

Stay connected with the most powerful Iridium Certus terminal available.

Iridium Certus 700 maritime satellite terminal utilizes the Iridium Certus network of 66 Low-Earth Orbit (LEO) satellites, providing pole-to-pole communication.

With its best-in-class RF performance, the C700 can deliver out-of-the-box uplink speeds of 352Kbps and downlink speeds of 704Kbps, with equally impressive low-elevation-angle RF efficiency thanks to its unique 12-patch phased array antenna design. It will support three high-quality, low-latency phone lines simultaneously; and as a solid-state antenna with no moving parts inside, the C700 is especially robust, requiring no scheduled maintenance over its lifetime.

Iridium Certus 700

INTELLIAN C700 CERTUS TERMINAL ORDERING DATA:
Manufacturer Part NumberPart Description
C1-70-A00SIntellian C700 Standalone Type Terminal
C1-70-A00RIntellian C700 19″ Rackmount Type Terminal



THE MOST TECHNICALLY ADVANCED IRIDIUM CERTUS MARITIME TERMINAL

The advanced performance of the C700 provides customers across all markets the flexibility to deploy the C700 as the primary communication antenna or as a companion to a VSAT system for seamless redundancy. The Intellian C700 is the first Iridium Certus terminal to be approved for the Japanese maritime market.

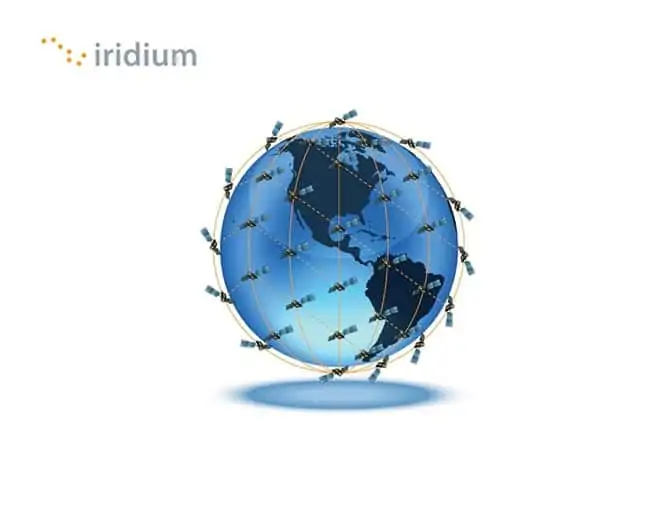

TRUE GLOBAL COVERAGE
  • Iridium LEO network of 66 satellites
  • Pole to Pole coverage
  • Low-Earth Orbit, stronger signals
  • Low latency, high speed and always-on
  • GMDSS Ready
BEST IN CLASS PERFORMANCE

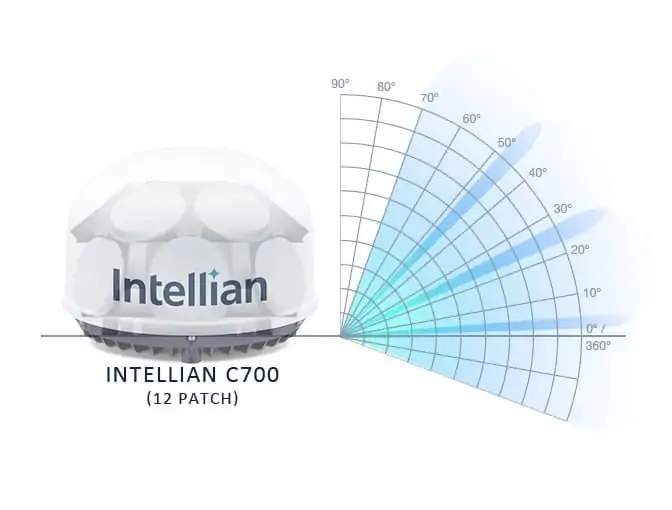

  • Using a 12 element patch phased-array antenna for maximum coverage
  • High power H2 antenna amplifier for 352 Kbps uplink speed
  • Excellent performance during any ship motion and low satellite elevation angles
  • VSAT companion for out of band management, supporting multiple users
  • Optimal satellite and beam handover ensuring seamless voice and data connectivity
THE PERFECT VSAT COMPANION
  • VSAT + C700 Bundled packages available
  • Data communication throughput – 352 Kbps Up, 704 Kbps Down
  • Out-Of-Band management
  • Powerful API enables full integration with Smart Boxes
  • 19″ Rack mount version available

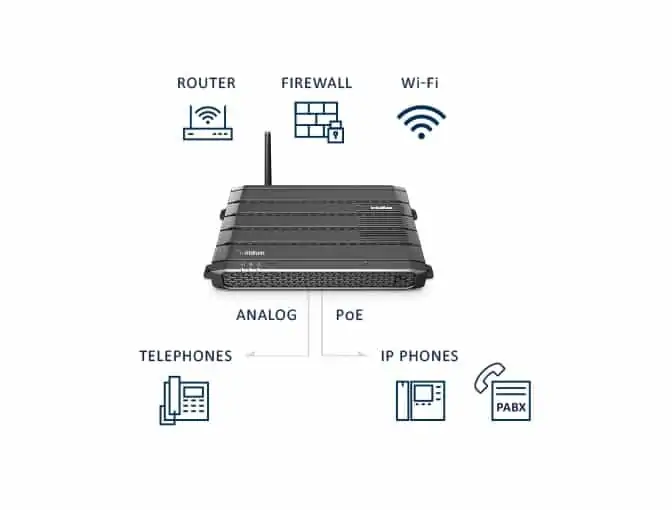

ALL-IN-ONE TERMINAL
  • Built-in Analog Terminal Adapter (ATA) for connecting analog phones and onboard PABX
  • Built-in Power-over-Ethernet (PoE) for powering IP devices, SIP phones, wireless access points
  • Built-in private automatic branch exchange (PABX) telephone switching system
  • Built-in Router supporting multiple users of the terminal
  • Built-in Firewall for cyber secure connections
  • Built-in WAN for least-cost routing of data traffic via 3G/4G or similar services
  • Built-in Wi-Fi
  • GMDSS Ready

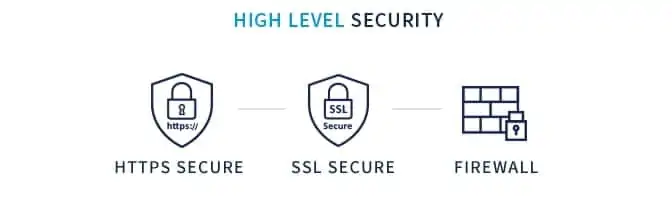

ENHANCED CYBER SECURITY
  • Built-In Firewall
  • HTTPS, TLS certificate
  • Data Encryption

Specifications of Iridium Certus 700:

IRIDIUM CERTUS 700 MECHANICAL SPECIFICATIONS:

Dimensions ( H x Ø )270mm x 370mm
Weight7257.48 g
Iridium Embedded TechnologyIridium Certus 9810 Module

IRIDIUM CERTUS 700 ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature RangeADU: -25 to +55; BDU: -15° to +55 ℃
Operating Humidity Range≥95 % RH
Durability StandardIEC60068-2-27 (Operation) IEC60721-3-6 Class 6M3 (Survival)
Ingress ProtectionADU: IP56, BDU: IP31
Vibration StandardIEC60945 (Operation), IEC60721-3-6 Class 6M3 (Survival)

INTELLIAN C700 CERTUS TERMINAL ANTENNA SPECIFICATIONS:

Antenna Design12-patch Phased Array Antenna Design

INTELLIAN C700 CERTUS TERMINAL RF INTERFACE SPECIFICATIONS:

Frequency Range1616 to 1626.5 MHz

INTELLIAN C700 CERTUS TERMINAL POWER SPECIFICATIONS:

Input Voltage Range10.8 – 30 V DC
Maximal Power120 W

INTELLIAN C700 CERTUS TERMINAL NETWORK SPECIFICATIONS:

Additional Networks3G/4G/LTE WAN Port
TelephonyUp to Three (3) High-Quality Voice Lines

INTELLIAN C700 CERTUS TERMINAL BROADBAND SPECIFICATIONS:

Data Speed Uplink (UL)352 Kbps
Data Speed Downlink (DL)704 Kbps

INTELLIAN C700 CERTUS TERMINAL WI-FI SPECIFICATIONS:

Wi-Fi EnabledYes
Interface802.11 b/g
