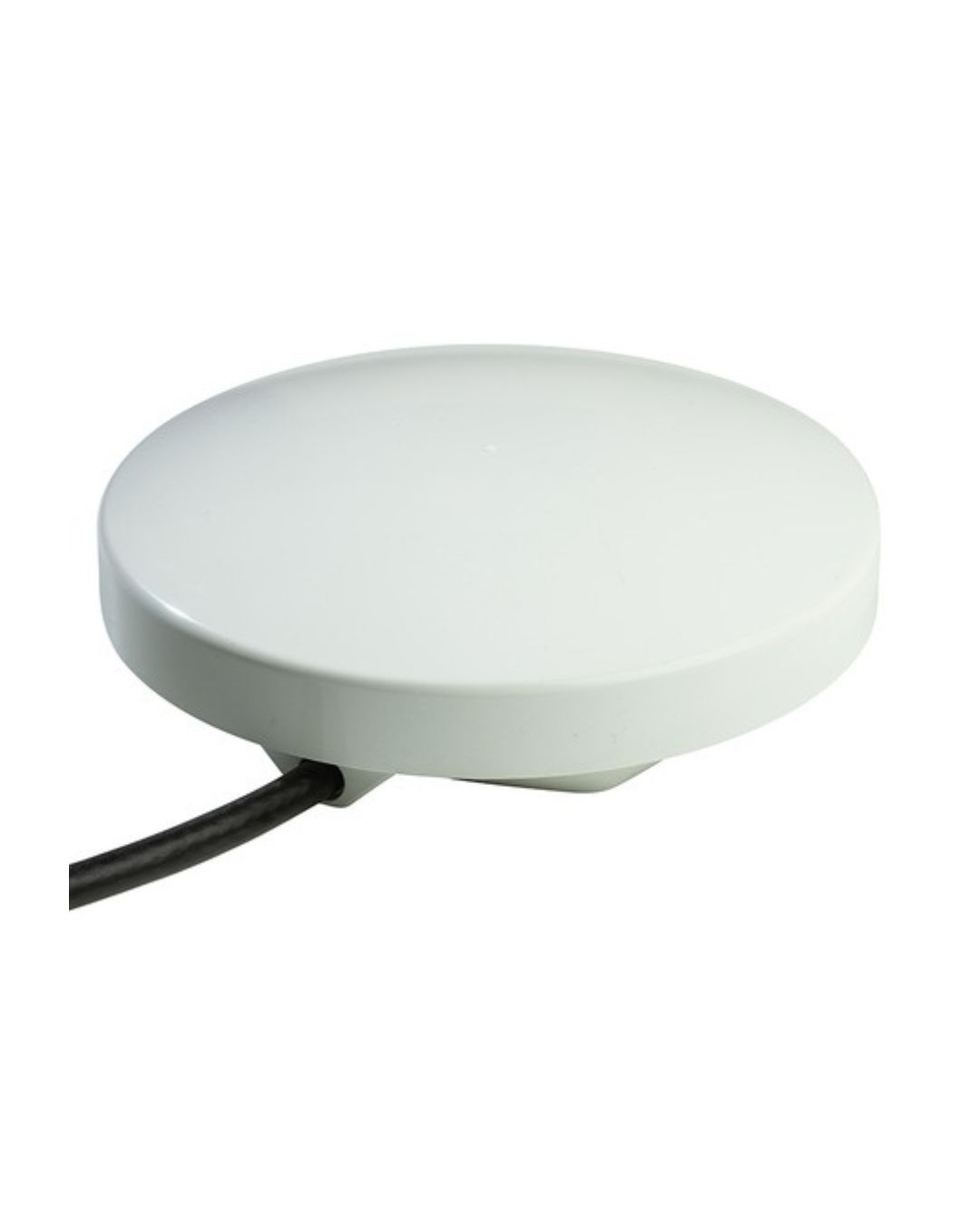

Global Satellite SCADA Tracker
Introducing the Global Satellite SCADA a rugged, versatile device designed for reliable tracking and two-way communication in the world’s most demanding environments. Built for permanent installation on vessels, vehicles, and remote assets, it ensures your operations stay connected anywhere on the planet.
Product Description
Introducing the Global Satellite Asset Tracker-a rugged, versatile device designed for reliable tracking and two-way communication in the world’s most demanding environments. Built for permanent installation on vessels, vehicles, and remote assets, it ensures your operations stay connected anywhere on the planet.
Product Overview
The Global Satellite Asset Tracker combines Iridium satellite and GSM connectivity in a compact, IP68-rated casing. This ensures your assets remain connected in the most cost-efficient way, whether on land or at sea, even in the harshest conditions. Designed for outdoor use, it is ideal for maritime, land, and IoT applications where reliability and global coverage are critical.
Key Features
-
Truly Global Coverage: Utilizes both Iridium satellite and GSM networks for seamless operation anywhere on Earth-even beyond the reach of standard mobile networks.
-
Autonomous GPS Tracking: Regularly transmits your asset’s position via GPS, with configurable reporting intervals from every 15 seconds up to 24 hours.
-
Two-Way Communication: Send and receive short messages, emails, and alerts using a paired Bluetooth device and dedicated app, even when out of cellular range.
-
Rugged & Waterproof: IP68-rated, submersible up to 3m, and sealed against dust and water for reliable performance in all weather conditions.
-
Flexible Mounting: Compact form factor with multiple mounting options for covert or exposed installation on vessels, vehicles, or remote equipment.
-
Integrated Sensors: Includes GPS, accelerometer, thermometer, power loss, and impact sensors for advanced monitoring and event alerts.
-
Power Options: Operates on 8–32V DC external power and features an internal rechargeable battery for up to 5 months of backup operation (depending on settings).
-
Cloud-Based Management: Monitor and manage your devices in real-time via our secure web portal for data-driven insights and remote configuration.
Technical Specifications
Specification | Details |
---|---|
Dimensions | 137mm diameter x 40mm height |
Weight | 0.55kg (including 3m cabling) |
Operating Temp. | -30°C to +60°C |
Storage Temp. | -40°C to +85°C |
Humidity | <75% Relative Humidity |
IP Rating | IP68 (submersible up to 3m) |
Power Input | DC 8–32V, 700mA max at 12V |
Battery Backup | Up to 5 months (settings dependent) |
Satellite Modem | Iridium 9603 |
Antenna | Integrated Maxtena 1629 (GSM optional) |
Connectivity | Iridium SBD, GSM (optional), Bluetooth LE, RS-232/RS-485/CAN |
Mounting Options | Flat steel or rail mount, cable lengths 3m, 5m, 10m, 15m (specify at purchase) |
Use Cases
-
Maritime: Track vessels and cargo anywhere at sea, ensure compliance, and enable emergency communication.
-
Land Transport: Monitor fleet vehicles in remote regions, automate event alerts, and maintain two-way messaging.
-
IoT & M2M: Integrate with sensors and external equipment for remote data collection and control.
Why Choose Global Satellite?
-
Unmatched Reliability: Engineered for mission-critical applications in the harshest environments.
-
Cost-Efficient Operation: Least-cost routing uses GSM where available, switching to satellite only when necessary.
-
Global Support: Backed by Global Satellite’s worldwide service network and 24/7 technical support.
Order & Support
Contact our team to discuss your requirements, integration options, and service plans.
- 📞 +1-954-459-3000 | +1-954-854-3389
📧 support@globalsatellite.us | webcontact@globalsatellite.us
🌍 Discover our website : globalsatellite.us – globalsatellite.gi – globalsatellite.fr – globalsatellite.ky – globalsatellite.ma
Global Satellite-Connecting your world, everywhere.
