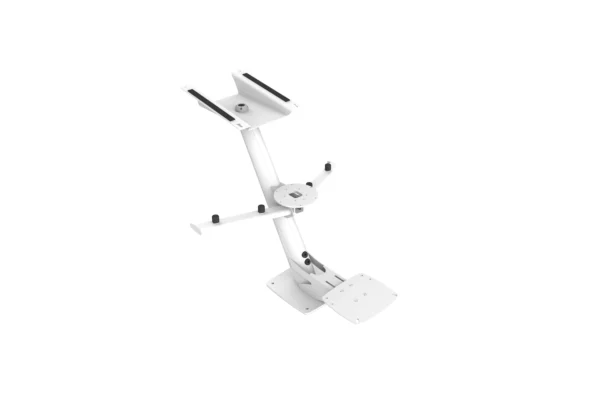

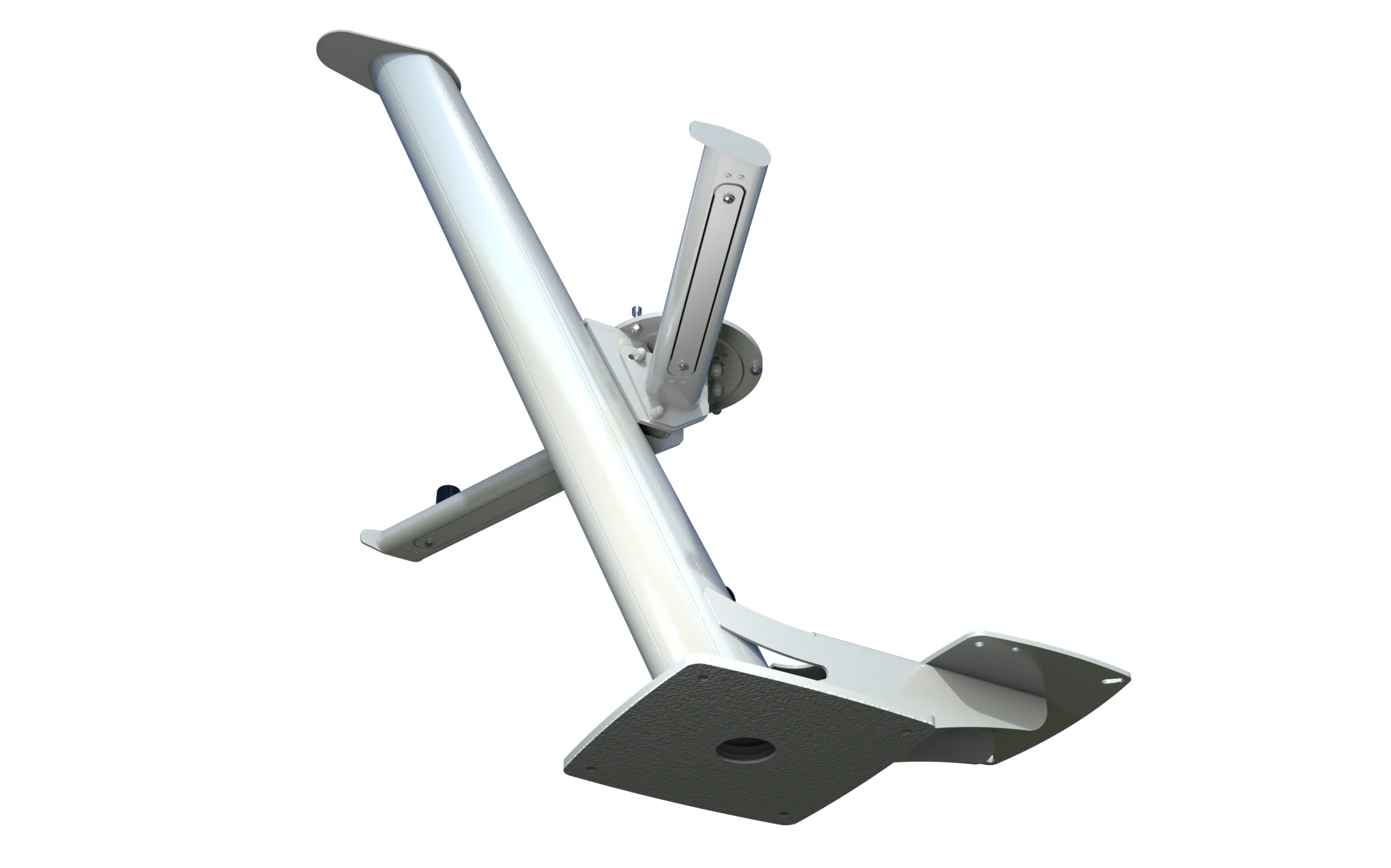

Starlink Tapered Mast
represents a complete reimagining of the classic tapered mast mount, engineered specifically for modern marine technology integration. Standing 820.4mm (32.30″) high and constructed from premium marine-grade aluminum
Product Description
The Ultimate Multi-Technology Marine Mounting Platform
One Mount. Multiple Technologies. Endless Possibilities.

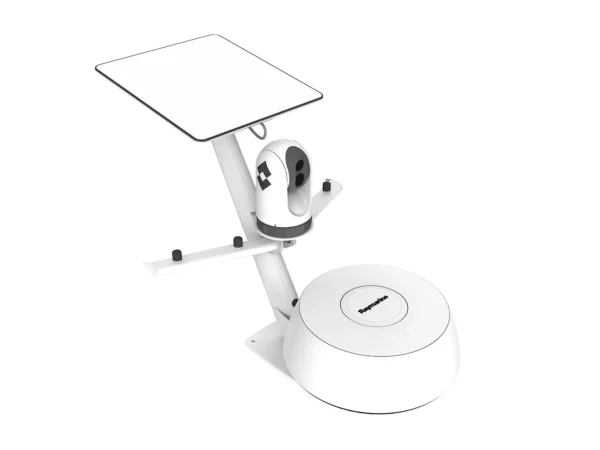

Experience the next evolution in marine mounting technology with the PTM-R1-SL Starlink Tapered Mast. This revolutionary multi-platform mount seamlessly integrates radar, Starlink Flat High-Performance, thermal cameras, antennas, and navigation equipment in one sophisticated, marine-grade solution.
Product Overview
The PTM-R1-SL represents a complete reimagining of the classic tapered mast mount, engineered specifically for modern marine technology integration. Standing 820.4mm (32.30″) high and constructed from premium marine-grade aluminum, this mount delivers unparalleled versatility while maintaining the robust performance demanded by marine professionals.
Revolutionary Design Philosophy
Multi-Technology Integration: Mount radar, thermal cameras, aerials, and Starlink Flat High-Performance in one streamlined installation, eliminating the need for multiple mounting points.
Enhanced Accessibility: Redesigned with easy-access panels under each “wing” for simplified cable routing and maintenance.
Universal Compatibility: Engineered to accommodate equipment from all major marine electronics manufacturers including Raymarine, Garmin, Simrad, and Lowrance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PTM-R1-SL |
| Material | Marine-Grade Aluminum |
| Height | 820.4mm (32.30″) |
| Color | White |
| Design | 8° Wedge |
| Cable Seal | Integrated |
| Mounting Gasket | Included |
| Radar Compatibility | Raymarine, Garmin, Simrad, Lowrance |
| Starlink Compatibility | Flat High-Performance Model |
Key Features & Benefits
Advanced Installation System
Easy Access Panels: Revolutionary under-wing access panels provide effortless cable routing and maintenance access, transforming what was once a complex installation into a straightforward process.
NMEA Connector Compatibility: Precision-engineered internal routing accommodates NMEA connectors within the mast and wings, eliminating the need to remove connectors during installation.
Pre-Drilled Mounting Points: Radar and equipment mount directly to the mast using manufacturer-provided mounting bolts, ensuring secure, vibration-free installation.
Marine-Grade Construction
- Premium Aluminum Construction: Crafted from the finest marine-grade aluminum for superior strength and corrosion resistance
- Global Satellite Group 4-Step Paint System: Exclusive marine paint process ensures long-lasting finish in harsh marine environments
- Integrated Cable Sealing: Built-in watertight sealing system eliminates the need for additional marine sealants
- 8° Wedge Design: Optimal angle for Starlink performance and equipment positioning
Multi-Technology Platform
Simultaneous Equipment Mounting:
- Radar systems (all major brands)
- Starlink Flat High-Performance
- Thermal cameras
- VHF antennas
- GPS systems
- Navigation lights
- Surveillance cameras
Installation Advantages
Simplified Cable Management
The PTM-R1-SL’s innovative design addresses the primary challenge of marine electronics installation: cable management. With easy-access panels and internal routing channels, technicians can complete complex multi-equipment installations with unprecedented efficiency.
Watertight Integrity
No Marine Sealant Required: The integrated sealing system, combined with the DS30 Cable Seal compatibility, ensures complete watertight protection without messy marine sealants.
Connector Preservation: Install without cutting equipment plugs, preserving manufacturer warranties and enabling easy equipment upgrades.
Professional Aesthetics
The tapered mast design provides a clean, professional appearance that complements any vessel’s profile while maximizing functionality.
Equipment Compatibility
Radar Systems
- Raymarine: All current radar models
- Garmin: Complete radar lineup
- Simrad: Full compatibility across range
- Lowrance: All radar systems
Communication Systems
- Starlink: Flat High-Performance Model
- Satellite Communication: Various Satcom systems
- VHF Radio: Standard marine VHF antennas
- GPS: All standard GPS antennas
Imaging & Surveillance
- Thermal Cameras: Professional marine thermal systems
- Surveillance Cameras: Standard marine security cameras
- Navigation Lights: LED and traditional lighting systems
SCA Testing Standards
Global Satellite Group’s Quality Assurance
Every PTM-R1-SL undergoes comprehensive testing through our SCA (Safe, Certified, Approved) program, backed by over 35 years of marine equipment expertise.
Rigorous Testing Protocol
30G Shock Testing: Evaluates structural integrity under extreme shock conditions, particularly relevant for radar mounting applications
Dynamic On-Water Testing: Real-world performance validation in harsh coastal conditions using test vessels
Corrosion Resistance: 100-hour salt spray testing simulating accelerated marine environmental exposure
Ingress Protection: IP testing from IPX4 to IP68 standards ensuring complete water and dust protection
Finite Element Analysis: Computer simulation validates design performance before physical testing
Material Verification: Positive Material Identification ensures consistent marine-grade aluminum quality
Installation Applications
Optimal Mounting Locations

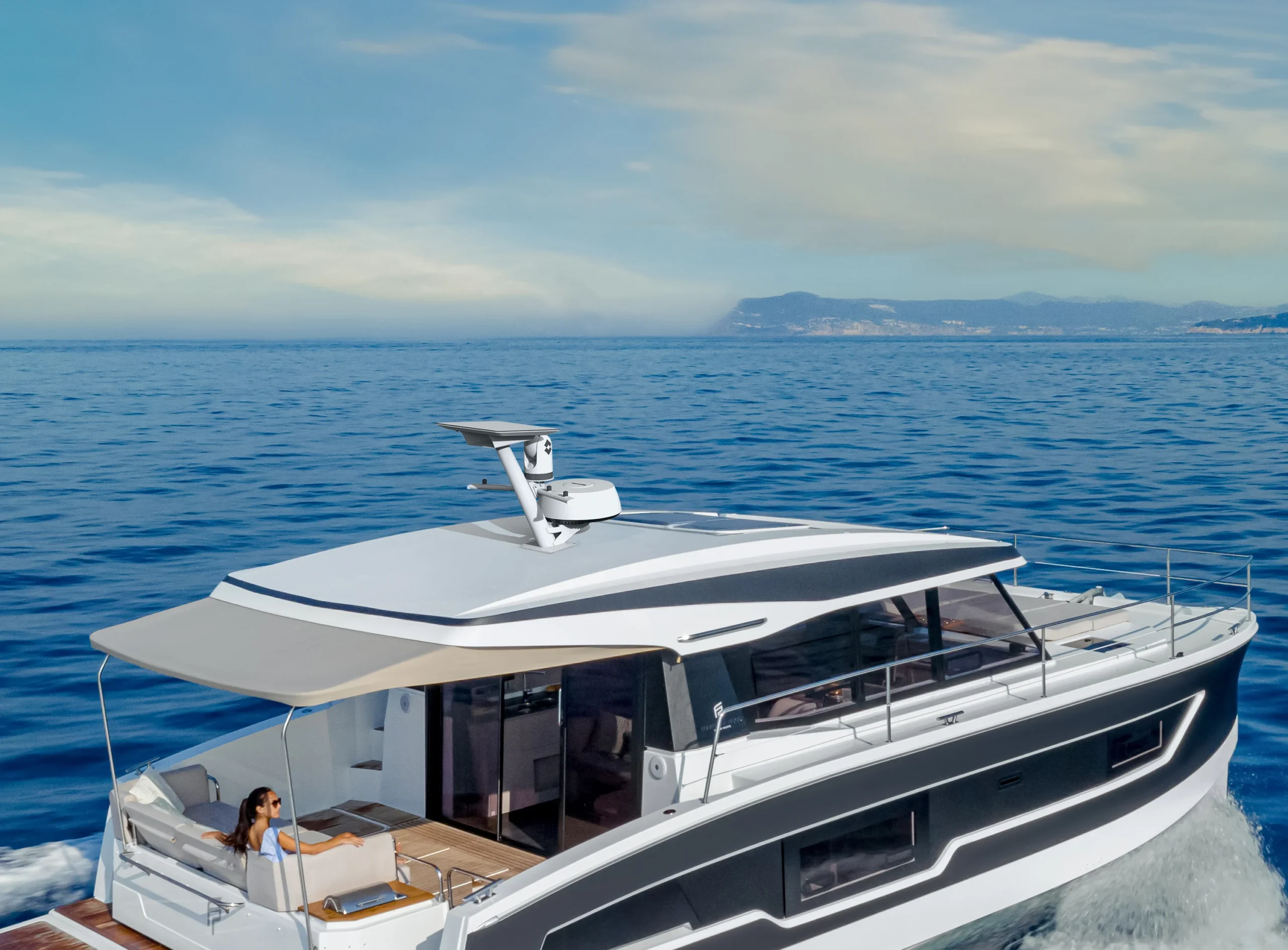

Radar Arches: Perfect integration with existing radar infrastructure Boat Tops: Clear sight lines for all equipment types Flybridge Areas: Premium positioning for luxury vessels Hardtops: Seamless integration with hardtop structures
Professional Installation Benefits
The PTM-R1-SL’s design enables professional-grade installations that would typically require multiple mounting points and complex cable routing. The result is a cleaner, more reliable, and maintainable system.
System Integration
Centralized Command Center
Transform your vessel into a sophisticated command center with all critical systems mounted and integrated from a single, robust platform. The PTM-R1-SL enables:
- Unified Equipment Management: All systems accessible from one location
- Streamlined Maintenance: Easy access panels simplify service procedures
- Enhanced Reliability: Reduced connection points minimize failure modes
- Professional Appearance: Clean, integrated look enhances vessel value
Why Choose PTM-R1-SL?
Proven Performance
Trusted by leading marine manufacturers and used by professional operators worldwide, the PTM-R1-SL delivers the reliability and performance demanded by commercial and recreational marine applications.
Future-Ready Design
The versatile mounting platform adapts to evolving technology needs, protecting your investment while enabling system upgrades and expansion.
Complete Solution
From integrated cable sealing to multi-equipment compatibility, every aspect is engineered to work together seamlessly, ensuring professional results.
Warranty & Support
Backed by Global Satellite Group’s comprehensive warranty and supported by decades of marine equipment expertise, the PTM-R1-SL represents a long-term investment in reliable marine technology integration.
